Mass deployment
Mass deployment allows you to upload information & resourceinfo.json, and commands via SSH to multiple devices ( only for devices support SSH with port number 22 )
Setting Device connection
Create the Thing and setup the resource

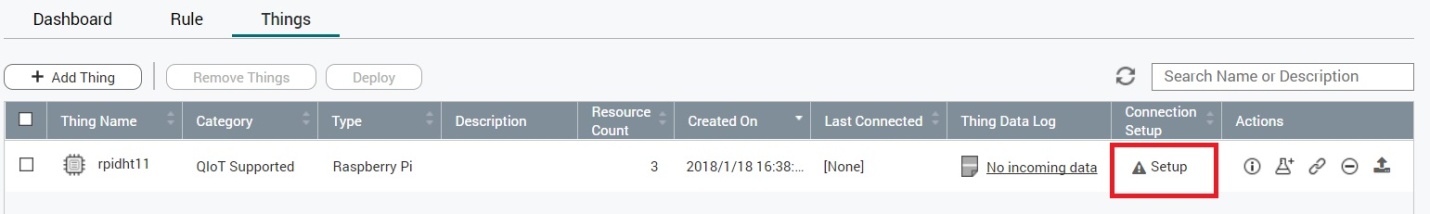

Choose the Thing you want to set up and click the "Setup" button

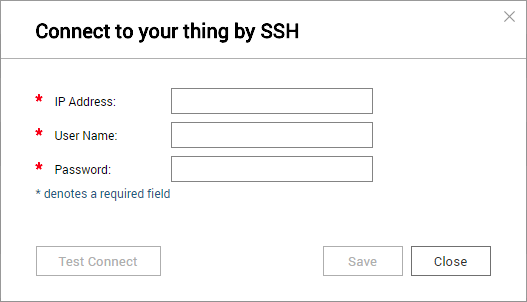

Enter the device connection information:
You can test the entered information is correct by clicking "Test Connect". When finished, click "Save"
Setting Deploy information
Click "Deploy" button:
There are two ways to deploy code to things :
Sample Code: Upload a file containing sample code provided by QNAP using your chosen protocol to your specified "Destination Folder". After setting, click "Deploy" to deploy to your device.
Custom Code : Upload your own code to your devices"Name": Enter a name for the code"Destination Folder": Enter a "destination path""Source Code Package": Upload a zip file containing your code (must be a zip file small than 50MB. After uploading your file to QIoT Suite Lite and clicking deploy, the file will be automatically unzipped to your device)
Click **"Deploy". **
In "Resourceinfo & Certificates" : You can setup the deployment of the resourceinfo.json file, to things
- Destination Folder: Enter a destination path
- Choose protocol: Choose whether to use MQTT, MQTTS, HTTP, HTTPS, or COAP (*If you choose MQTTS, you must set an SSH certificate and upload the certificate to the Destination Folder. You can use existing certificate or to create a new certificate)
After setting, click "Deploy"
In "Command Execution" : You can remotely run commands to start the service of your things.The commands and records will be saved in your home path (for example: ~/bundle)Click "Run" to send commands to your device.
Mass Deployment
Choose multiple "things" and click "Deploy" to set all of the things’ deployment information at the same time (alll of the things must complete the "Connection Setup" )
